Unobat 45
A versatile sports floor solution

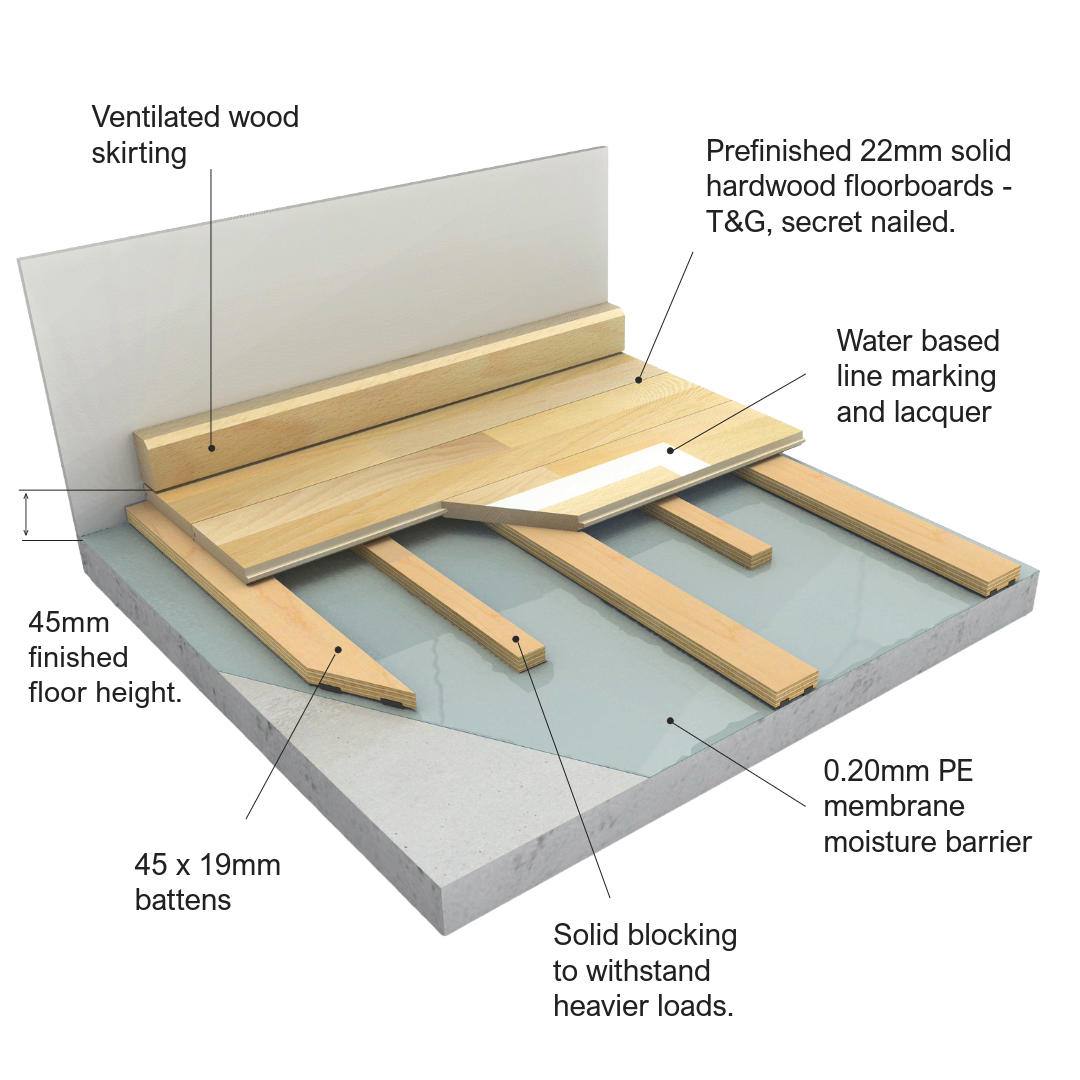

The Unobat 45 sports flooring system is ideal for multi-functional sports halls, from small leisure centres to large arenas. Catering well for almost all types of sport, Unobat 45 is comprised of 22mm depth solid floor boards which are nailed to a resilient subconstruction of one layer engineered battens. Each batten features a unique arrangement of specially developed rubber strips premounted to their underside allowing for greater durability and player cushioning.
| Use |
|---|
| All types of sport |
| Multi-fuctional sports halls |
| From small leisure centres to large arenas |
| Refurbishment |
Unobat 45 Specs
| Sanding & Resealing | Floorboard Type | Batten Centre, C/C | Suitable for Underfloor Heating | Subconstruction | Construction Height | Junckers 25 Year Fatigue Test |
|---|---|---|---|---|---|---|
| Yes – to bare wood 8-10 times | Prefinished 22mm 2-strip solid hardwood | Choice between 336mm and 411mm | Yes | Single layer batten system | 45mm | Yes |
Examples of Unobat 45 in use
Te Ruaparaha Arena
Porirua, Wellington.
Is Unobat 45 the right solution for your project?
There are a wide range of factors that will determine the most appropriate flooring solution for your project. Please connect with the Hardwood Technology team – we’re here to help you get a great flooring solution and are only too happy to help you with valuable advice from our decades of experience.
About Junckers Sports Floorboards
Junckers’ sports floors are made from 100% solid hardwood and will last for generations. Each floor board is made from two rows of staves and is tongue and groove jointed all round.
The floors are extremely stable and therefore cause no challenges when humidity levels change through the year. Junckers take far longer than normal over the drying process to ensure that the movements that occur naturally in all wood is fully controlled and kept to a minimum. Beech sports floors are dried using Junckers’ unique press drying method. Ash and maple sports floors are kiln dried.
Junckers’ floors are ready to use as soon as they are fitted. This is because the floors are sealed in the factory with Junckers’ own hard wearing polyurethane lacquer.
All Junckers solid hardwood sports floors have the Danish Indoor Climate Certificate for low emissions of organic substances and can be delivered with either a FSC® or PEFC™ accreditation.
Each floor board has a length of 3700mm and covers approx. 0.5 m².
